Airbox 400ºC/2h, motor and transmission inside the box.
Aplicación:
-
Extraction unit for work outside of the fire risk area.
Composición:
- Fan:
- Structure in galvanized steel.
- Forwardly impellers in galvanized steel.
- Lineal air direction.
- Engine:
- IE2 motors except smaller than 0.75 kW, single-phase power, and 2 speeds.
-
Class F motors with ball bearings, IP55 protection, with 1 or 2 speeds depending on model.
- Three-phase 230/400V.-50Hz. (up to 5.5 hp) and 400/690V.-50Hz (above 5,5HP powers).
- Maximum temperature of air transport: S1 Service continuous -20 + 120ºC , S2 Service 200ºC/2h, 300ºC/2h and 400ºC/2h.
- Finish:
- Anticorrosive in galvanized steel.
- Under demand:
- Extractors with vertical output.
Accesorios:
- FLC-PU Elastic joint (M0).
- Roof elements.
- Visor drive, aspiration.
Otros productos disponibles:
- Horizontal or vertical discharge.
- Standard supply with motor on the right side seen from the discharge port, position on the left upon request.
Texto para oferta:
-
Airbox for transferring air at 400°C/2h, made of galvanized steel. Centrifugal fan with transmission and pulleys, built inside IP-55 motor.

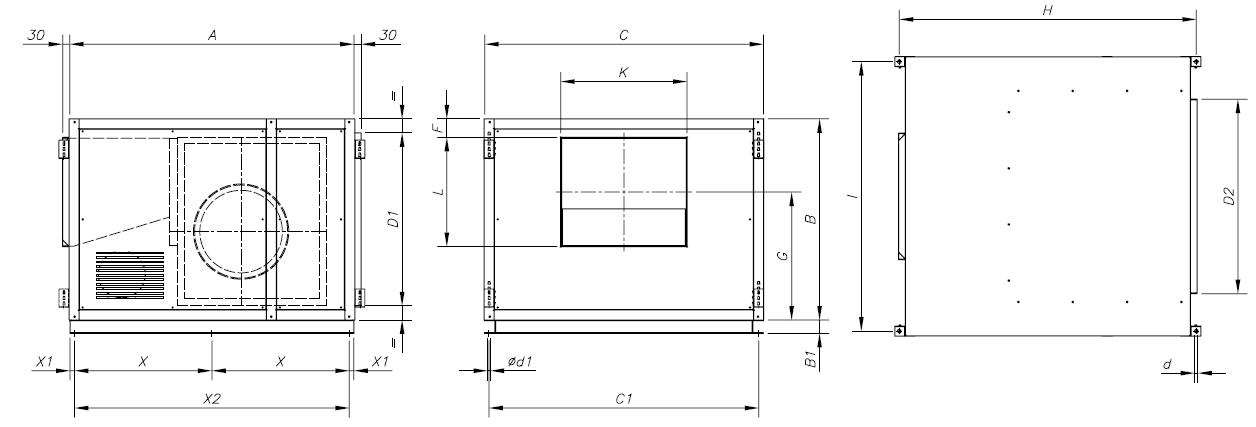

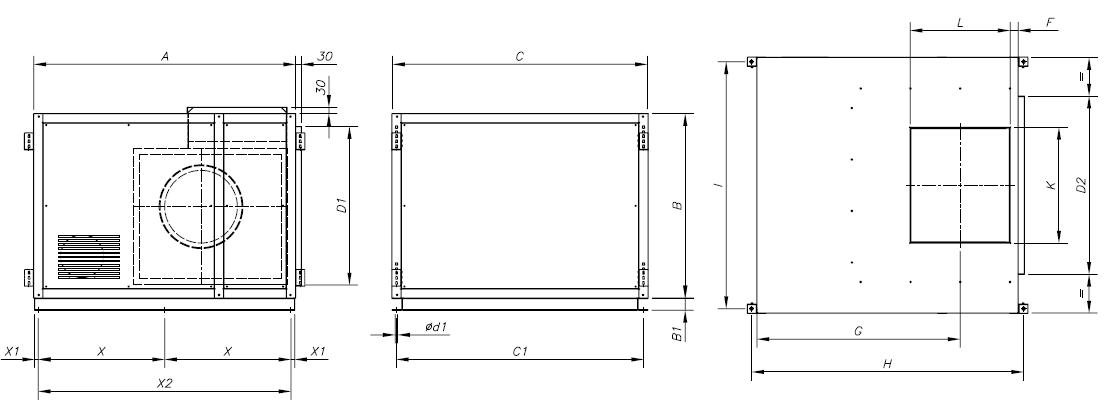

Dimensiones:
Datos técnicos:
Características del punto de máxima eficiencia (BEP):
